Onsite Support & Mobile Equipment

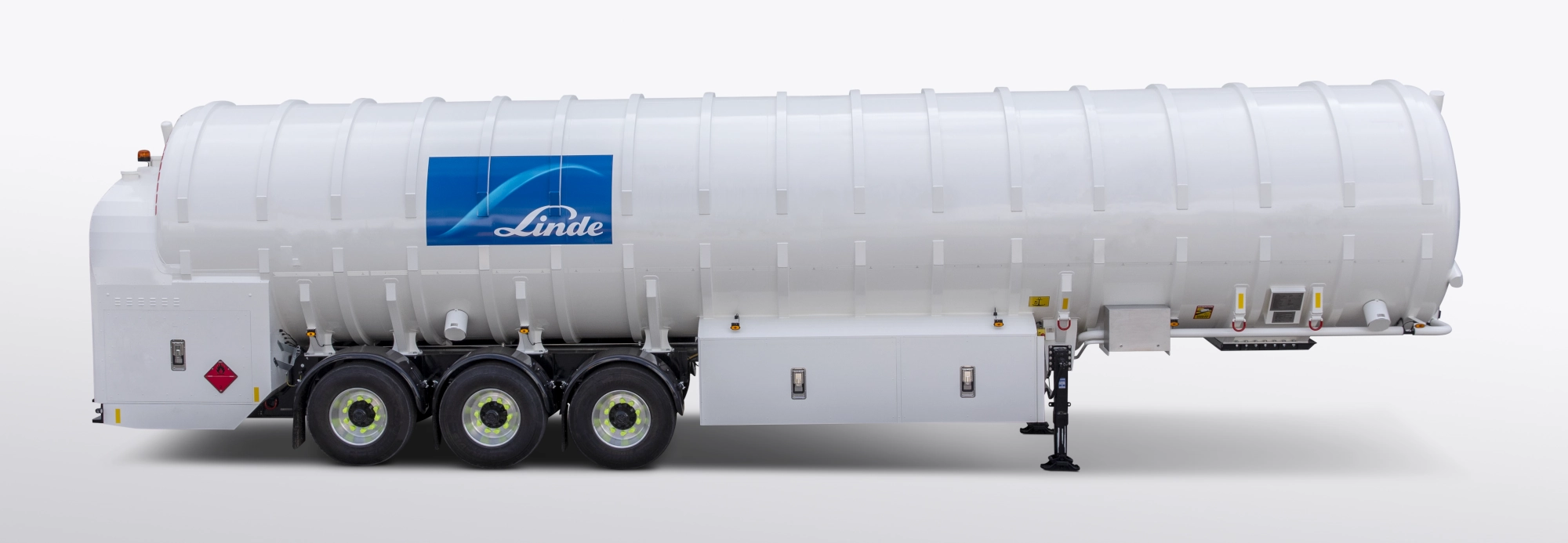

Linde Trailer

Backed by a diverse fleet of mobile nitrogen pumping and storage equipment, Linde is equipped to support projects of all sizes and complexities. Our solutions are engineered to accommodate varying flow rates, pressures, and temperature requirements, allowing us to deliver tailored equipment rental and on-site service solutions wherever and whenever they are needed.

Linde Pumpers

840 Diesel Fired Pumper

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 5000 PSI (34474 kPa)
  • Maximum Flow: 392 m³/min
  • Maximum Temperature: 315 ˚C

540 Diesel Fired Pumper

Key Specifications

  • Capacity: 5000 m³ LN₂
  • Maximum Pressure: 5000 PSI (34474 kPa)
  • Maximum Flow: 392 m³/min
  • Maximum Temperature: 315 ˚C

160 Diesel Fired Pumper

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 5000 PSI (34474 kPa)
  • Maximum Flow: 85 m³/min
  • Maximum Temperature: 315 ˚C

360F Flameless Pumper

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 4000 PSI (27579 kPa)
  • Maximum Flow: 169 m³/min
  • Maximum Temperature: 80 ˚C

230F Flameless Pumper

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 4000 PSI (27579 kPa)
  • Maximum Flow: 108 m³/min
  • Maximum Temperature: 80 ˚C

160F Flameless Pumper

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 4000 PSI (27579 kPa)
  • Maximum Flow: 85 m³/min
  • Maximum Temperature: 80 ˚C

Linde TMVUs

TMVU 100

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 250 PSI (1724 kPa)
  • Maximum Flow: 9 m³/min Without Steam Assist
  • Maximum Temperature: 80˚ C

TMVU MVE

Key Specifications

  • Capacity: 7000 m³ LN₂
  • Maximum Pressure: 250 PSI (1724 kPa)
  • Maximum Flow: 9 m³/min Without Steam Assist
  • Maximum Temperature: N/A

Linde Tube Trailers

Jumbo Tube Trailer

Key Specifications

  • Capacity: 4000 m³ GN₂
  • Maximum Pressure: 2640 PSI / 18202 kPa
  • Length: 12.5 m

Multi Tube Trailer

Key Specifications

  • Capacity: 1800 m³ GN₂
  • Maximum Pressure: 2640 PSI / 18202 kPa
  • Length: 8.3 m

Linde Transporters

Tandem Transporter

Key Specifications

  • Capacity: 16,500 m³ LN₂
  • Length: 12.8 m
  • Gross Vehicle Rated Weight: 29950 kg

Tridem Transporter

Key Specifications

  • Capacity: 20,000 m³ LN₂
  • Length: 14.3 m
  • Gross Vehicle Rated Weight: 34060 kg

Tri-Tri Transporter

Key Specifications

  • Capacity: 24,000 m³ LN₂
  • Length: 14.2 m
  • Gross Vehicle Rated Weight: 40581 kg

Mobile Storage

Whale Size Mobile Storage

Key Specifications

  • Capacity: 41,000 m³ LN₂
  • Length: 16.1 m
  • Gross Rated Weight: 63817 kg

Queen Size Mobile Storage

Key Specifications

  • Capacity: 59,000 m³ LN₂
  • Length: 16.1 m
  • Gross Rated Weight: 85150 kg

Need the right equipment and expertise to keep your project moving?

From nitrogen pumping units and storage vessels to specialized on-site support services, Linde has the equipment and technical expertise to help meet your project's requirements. Contact our team today to discuss your application and find the right solution for your flow, pressure, and temperature needs.
